TR5, TR250, TR6

Product Matrix All TR5, TR250, TR6 Parts

CV DRIVESHAFTS

£1140 (pair)

ALL PRICES EXCLUSIVE OF VAT

TR4 IRS    TR5 TR250    TR6


Although originally developed by GKN for first Mini in 1959, the Constant Velocity / Homokinetic - or CV joint is now the favoured technology for both front and rear-wheel drive applications.
As its name implies the driveshaft runs at a constant rotational speed irrespective of its operating angle, whereas the simpler Hook joints’ rotational speed varies according to the angle it runs at.
CV joints are more efficient and reduce power losses through the drive system whilst delivering smoother driveline operation and because the system runs ‘greasy ball bearings’ it eliminates the clunk and spline lock associated with sliding spline alternatives.

Whilst improved ease of suspension movement enhances the ride and handling.
Technical details:
    Uprated hub with larger bearings and stronger flange.
    Flange manufactured from EN16T steel and splined for strength and easy disassembly.
    Hub machined from Billet 6082 spec alloy.
    Genuine Timken / SKF taper roller bearings widely spaced, larger than standard and solidly shimmed.
    Bearing design and layout developed in conjunction with Timken UK.
    Improved durability and load capacity over double row ball bearings.
    CV joints produced by original equipment suppliers to Kia, Hyundai and Nissan.
    CV joints used are from mass production cars of greater kerb and train weight.
    In its’ original fitment the outer joint is used in front-wheel drive applications, so subject to more angulation changes than in these shafts.
    Driveshaft manufactured from EN24T steel.
    All joints are filled with top quality Molybdenum Disulphide grease.
    Inner studs engage the differential flange with the shank not the threaded portion.
    Fits all cars without modifying the trailing arm.

It is also good idea to spray them with ACF 50'' to keep them looking A1 and to
protect them against corrosion.

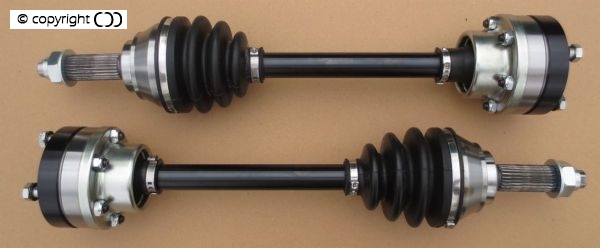

CV Driveshaft

CV Driveshaft

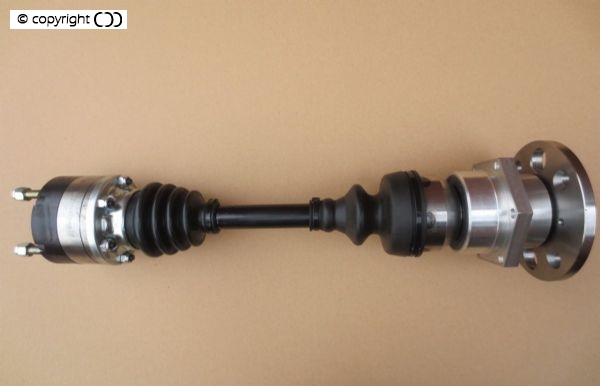

Shafts With And Without Hub

Shafts With And Without Hub

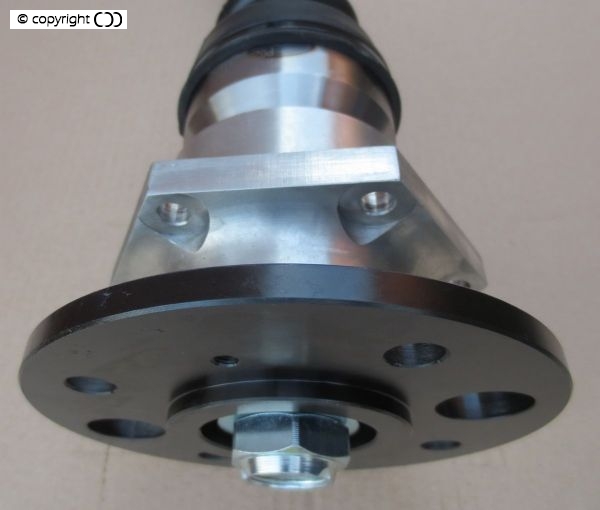

Hub Shaft Side

Hub Shaft Side

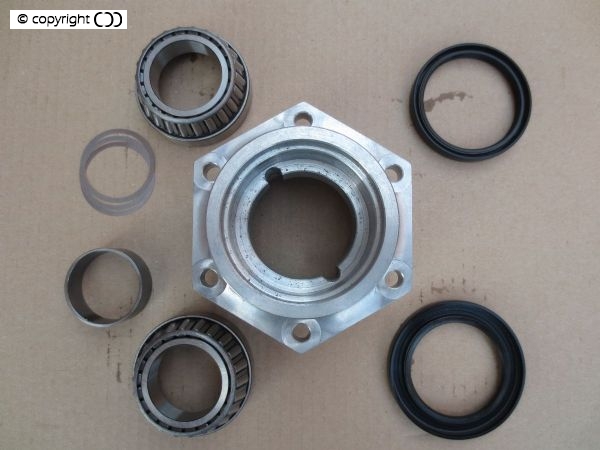

Hub Parts

Hub Parts

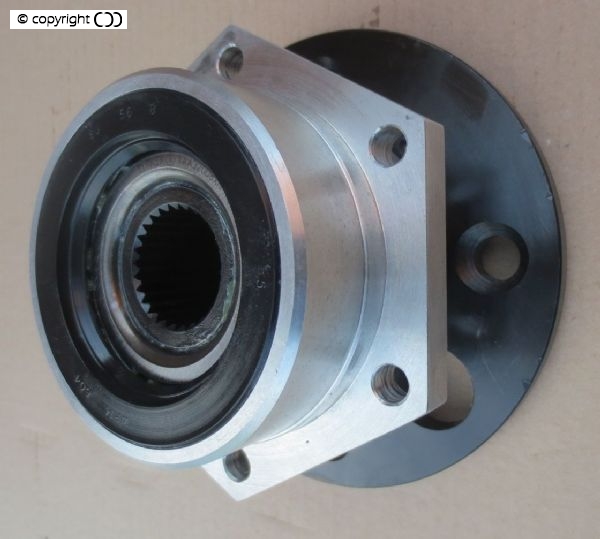

Hub Assembly

Hub Assembly

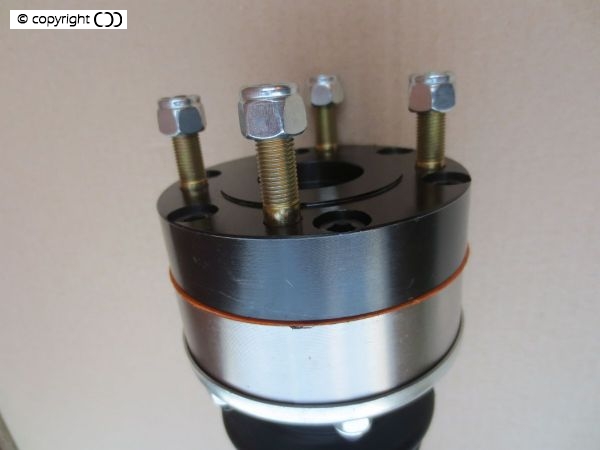

TR Diff Adapter

TR Diff Adapter
