INNSBRUCK

Product Matrix All INNSBRUCK Parts

UPRATED REAR UJ HUB

£380 (Each)

for  Triumph Independent  Rear Suspension (IRS) price £380 Each
Fitted to TR4 IRS, TR5, TR6, STAG, INNSBRUCK & TVR ‘M’ Series

    The problems with these units are widely known and acknowledged.
    They were fine when they were new but now they are regarded as a ‘pain’!
    The need for specialist tools or big hydraulic presses to dissemble.
    That they are very hard to build and maintain the bearing end float.
    The flange becomes thinner as they have to be skimmed due to distortion.
    The Yoke UJ diameters become bigger the more they are dissembled and reassembled.
    In addition the flanges are known to crack and fail.
    And the holding thread to the shaft shears.

THE  REDESIGNED,  MADE FROM NEW COMPONENTS,  TRIUMPH REAR HUB UNITS  SOLVE THESE PROBLEMS AND PROVIDE IMPORTANT UPGRADES.

    Splined shaft and flange construction does not need ‘big’ pullers to separate.
    Bearings are solidly spaced using shim washers so do not go out of adjustment.
    Wear compensation is easily accomplished with DIY tools.
    Because of this the flanges are not distorted so do not need skimming.
    And driveshaft joints do not need to be disassembled so often.
    Thread to shaft diameter is increased by 85%.
    Flange design has increased diameters and radii to stop cracking and failure.
    Bearing sizes are increased and bearing design has been validated by Timken UK.
    Only Top quality materials, bearings and seals are used.
    No Cheap Far East bits!

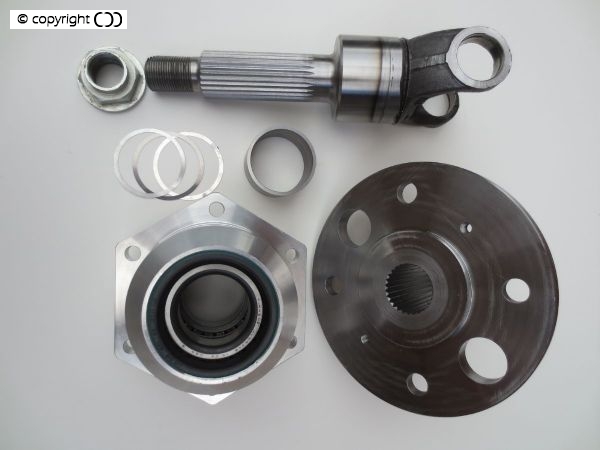

Hub Components with UJ shaft

Hub Components with UJ shaft

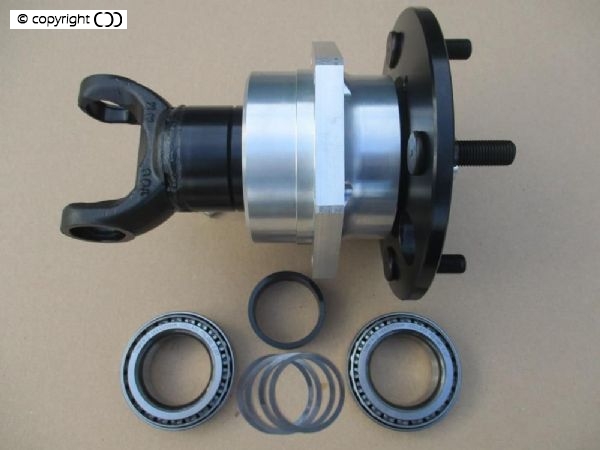

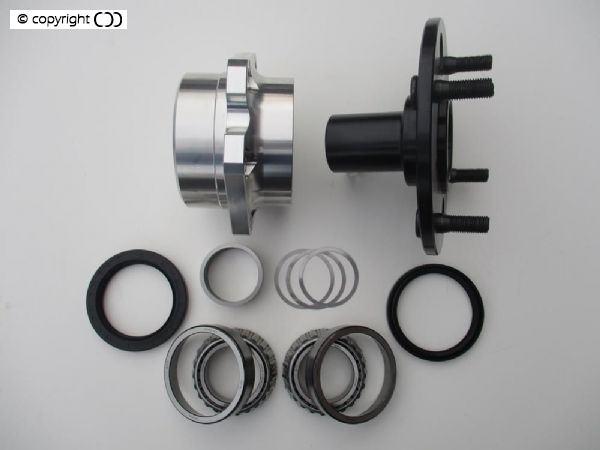

Rear UJ hubs

Rear UJ hubs

Rear UJ hubs

Rear UJ hubs

For further information and to discuss your requirement please email us on info@classicdrivingdevelopment.co.uk or call 07812 766789. You can also enquire about an order below with your car details, we will contact you to confirm your requirement.
